Deploy Flask Application with Docker, Nginx and uWSGI

In today's web development landscape, deploying web applications requires a robust architecture that ensures scalability, security, and optimal performance. This blog post explores the deployment of a Flask application using NGINX as a reverse proxy server and uWSGI as a WSGI server. This architecture not only enhances the application's ability to handle high traffic but also improves security through SSL/TLS encryption and provides efficient load balancing capabilities.

The following sections will detail the components involved, the typical request flow from client to application, and the advantages of this architectural approach.

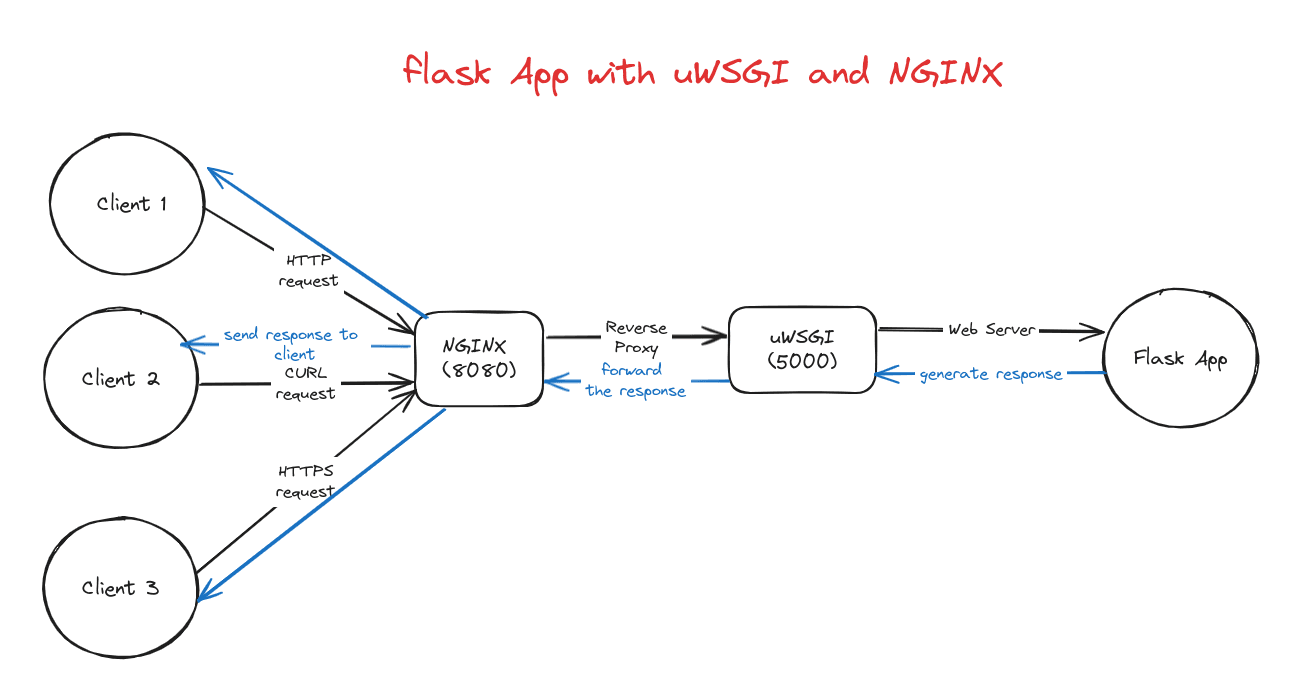

Architecture

Components

Client: This is the user or application that interacts with the web application. It can be a web browser, mobile device, or another software application.
NGINX: NGINX is a reverse proxy server that sits in front of the web server (uWSGI) and the Flask application. It acts as a load balancer, distributing traffic among multiple web servers and improving the application's performance and scalability. NGINX can also handle SSL/TLS encryption and decryption, improve security.
uWSGI: uWSGI is a web server gateway interface (WSGI) server. It translates requests from the reverse proxy server (NGINX) into a format that the Flask application can understand and vice versa.
Flask application: This is the Python web application built with the Flask framework. It handles the application logic, such as processing user input, interacting with databases, and generating responses.
Docker: Provides containerization for the Flask application, facilitating deployment and scalability.

Scenario

1.Client sends a request: The client (web browser, mobile device, etc.) initiates a request to the web application by entering a URL in the address bar or clicking on a link. The request includes information about the requested resource, such as the path, headers, and any data being sent to the server (e.g., form data).

2.Request reaches NGINX: The request is routed to the NGINX server.

3.NGINX distributes request: NGINX can handle multiple web servers running the Flask application. It distributes the request to an available uWSGI web server.

4.uWSGI translates request: The uWSGI server receives the request from NGINX and translates it into a format that the Flask application can understand (WSGI).

5.uWSGI forwards request to Flask: uWSGI forwards the translated request to the Flask application.

6.Flask application processes request: The Flask application processes the request, which may involve interacting with a database, performing calculations, or generating content.

7.Flask generates response: The Flask application generates a response that includes the requested data (e.g., HTML content, JSON data) and an HTTP status code (e.g., 200 OK, 404 Not Found).

8.Flask sends response to uWSGI: The Flask application sends the response back to the uWSGI server.

9.uWSGI translates response: uWSGI translates the response back into a format that NGINX can understand (usually HTTP).

10.uWSGI sends response to NGINX: uWSGI forwards the translated response to NGINX.

11.NGINX sends response to client: NGINX sends the response back to the client.

12.Client receives response: The client receives the response from NGINX and displays it to the user (e.g., renders an HTML page in the web browser).

Benefits of this architecture

Scalability: NGINX can distribute traffic among multiple web servers, which allows the application to handle a high volume of traffic.
Security: NGINX can handle SSL/TLS encryption and decryption, which helps to protect sensitive data transmissions between the client and the server.
Performance: NGINX can cache static content, such as images and CSS files, which can improve the application's performance.
Load balancing: NGINX can distribute traffic among multiple web servers, which helps to improve the application's responsiveness.

Implementation

Docker Configuration

Dockerfile

FROM python:3.11-alpine

RUN mkdir /install
WORKDIR /install
COPY requirements.txt /requirements.txt

RUN apk update \
 && apk add  --no-cache libpq libstdc++ nginx python3-dev build-base uwsgi uwsgi-python3 shadow linux-headers musl-dev \
 && pip3 install --upgrade pip \
 && pip install --prefix=/install --no-warn-script-location -r /requirements.txt \
 && find /install \
     \( -type d -a -name test -o -name tests \) \
     -o \( -type f -a -name '*.pyc' -o -name '*.pyo' \) \
     -exec rm -rf '{}' + \
 && runDeps="$( \
     scanelf --needed --nobanner --recursive /install \
             | awk '{ gsub(/,/, "\nso:", $2); print "so:" $2 }' \
             | sort -u \
             | xargs -r apk info --installed \
             | sort -u \
 )" \
 && apk add --virtual .rundeps $runDeps

FROM python:3.11-alpine
RUN pip freeze --all | grep -v pip | cut -d== -f1 | xargs pip uninstall -y && pip  install --upgrade pip
#Copy python and alpine dependencies
COPY --from=0 /install /usr/local

RUN apk --no-cache add linux-headers musl-dev

RUN pip install --upgrade pip

RUN mkdir /app
COPY . /app/
WORKDIR /app

RUN find -name '*.sh' -exec chmod +x {} \;
ENV PYTHONUNBUFFERED=0
CMD ["sh", "-c", "tail -f /dev/null"]

docker compose file

version: '3.5'
services:
  pc-builder-app:
    container_name: pc-builder-app
    build:
      context: .
      dockerfile: Dockerfile
    restart: unless-stopped
    ports:
      - 5000:5000
    volumes:
      - .:/app
    environment:
      - LOG_LEVEL=INFO
      - DOMAIN=/pc-builder-app
      - ENV=PROD
    command: sh -c "chmod +x ./entrypoint.sh && ./entrypoint.sh"

uWSGI

1- Add uwsgi uwsgi-python3 alpine packages in Dokerfile

RUN apk add uwsgi uwsgi-python3

2- Add uWSGI python package in requirements.txt

uWSGI==2.0.25.1

3- Add uWsgi run app command in entrypoint.sh

uwsgi --http 0.0.0.0:5000  --wsgi-file /app/app.py --callable app

4- Run entrypoint.sh in docker-compose service command

version: '3.5'
services:
  pc-builder-app:
    container_name: pc-builder-app
    ...
    command: sh -c "chmod +x ./entrypoint.sh && ./entrypoint.sh"

5- uWSGI + Flask app logs

2024-05-26 14:16:06,188 INFO [PcBuilderApp] 58 Components retrieved successfully
[pid: 8|app: 0|req: 7/7] 172.22.0.5 () {64 vars in 1305 bytes} [Sun May 26 14:16:06 2024] GET /pc-builder-app/main => generated 11710 bytes in 10 msecs (HTTP/1.0 200) 2 headers in 82 bytes (1 switches on core 0)
[pid: 8|app: 0|req: 8/8] 172.22.0.5 () {62 vars in 1239 bytes} [Sun May 26 14:16:06 2024] GET /pc-builder-app/static/css/base.css => generated 0 bytes in 2 msecs (HTTP/1.0 304) 4 headers in 182 bytes (0 switches on core 0)
[pid: 8|app: 0|req: 9/9] 172.22.0.5 () {62 vars in 1220 bytes} [Sun May 26 14:16:06 2024] GET /pc-builder-app/static/js/main.js => generated 0 bytes in 1 msecs (HTTP/1.0 304) 4 headers in 181 bytes (0 switches on core 0)
[pid: 8|app: 0|req: 10/10] 172.22.0.5 () {62 vars in 1239 bytes} [Sun May 26 14:16:06 2024] GET /pc-builder-app/static/css/main.css => generated 0 bytes in 1 msecs (HTTP/1.0 304) 4 headers in 183 bytes (0 switches on core 0)
[pid: 8|app: 0|req: 11/11] 172.22.0.5 () {62 vars in 1309 bytes} [Sun May 26 14:16:06 2024] GET /pc-builder-app/static/images/ccmainbanner-1.jpg => generated 0 bytes in 2 msecs (HTTP/1.0 304) 4 headers in 191 bytes (0 switches on core 0)

Nginx

1- Add nginx docker service

version: '3.5'
services:
  ...
  nginx:
    image: nginx:latest
    container_name: nginx
    ports:
      - "8080:80"
    volumes:
      - ./nginx/nginx.conf:/etc/nginx/nginx.conf
      - ./nginx/conf.d:/etc/nginx/conf.d

2- Add nginx reverse proxy config in /etc/nginx/conf.d/default.conf

server {
    listen       80;
    listen  [::]:80;
    server_name  localhost;
    location / {
        proxy_pass http://pc-builder-app:5000;
        proxy_set_header Host $host;
        proxy_set_header X-Real-IP $remote_addr;
        proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for;
        proxy_set_header X-Forwarded-Proto $scheme;
    }
    error_page   500 502 503 504  /50x.html;
    location = /50x.html {
        root   /usr/share/nginx/html;
    }
}

3- nginx logs

172.22.0.1 - admin [26/May/2024:12:35:43 +0000] "GET /pc-builder-app/table HTTP/1.1" 200 18643 "http://localhost:8080/pc-builder-app/main" "Mozilla/5.0 (X11; Linux x86_64) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/124.0.0.0 Safari/537.36" "-"
172.22.0.1 - admin [26/May/2024:12:35:43 +0000] "GET /pc-builder-app/static/css/base.css HTTP/1.1" 304 0 "http://localhost:8080/pc-builder-app/table" "Mozilla/5.0 (X11; Linux x86_64) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/124.0.0.0 Safari/537.36" "-"
172.22.0.1 - admin [26/May/2024:12:35:43 +0000] "GET /pc-builder-app/static/css/table.css HTTP/1.1" 304 0 "http://localhost:8080/pc-builder-app/table" "Mozilla/5.0 (X11; Linux x86_64) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/124.0.0.0 Safari/537.36" "-"
172.22.0.1 - admin [26/May/2024:12:35:43 +0000] "GET /pc-builder-app/static/js/table.js HTTP/1.1" 304 0 "http://localhost:8080/pc-builder-app/table" "Mozilla/5.0 (X11; Linux x86_64) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/124.0.0.0 Safari/537.36" "-"
172.22.0.1 - admin [26/May/2024:12:35:43 +0000] "GET /pc-builder-app/static/images/ccmainbanner-1.jpg HTTP/1.1" 304 0 "http://localhost:8080/pc-builder-app/table" "Mozilla/5.0 (X11; Linux x86_64) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/124.0.0.0 Safari/537.36" "-"

Production Deployment

For this is demo pc-builder-app is the name of the Flask application

NGINX Configuration

Under '/etc/nginx/conf.d/server.conf' add flask app location :

location /pc-builder-app/ {
        proxy_pass             http://127.0.0.1:5001;
        proxy_read_timeout     60;
        proxy_connect_timeout  60;
        proxy_redirect         off;

        # Allow the use of websockets
        proxy_http_version 1.1;
        proxy_set_header Upgrade $http_upgrade;
        proxy_set_header Connection 'upgrade';
        proxy_set_header Host $host;
        proxy_cache_bypass $http_upgrade;
   }

In this demo we are using '/pc-builder-app/' as subdomain

Docker Configuration

In the docker-compose file, Add Domain and Environment to the flask app environment variables running with docker :

services:
  pc-builder-app:
    container_name: pc-builder-app
    ...
    environment:
      - DOMAIN=/pc-builder-app
      - ENV=PROD
    ...

Flask app configuration

In app.py (main.py) :

Implement Flask Blueprint to add app domain/subdomain to all application routes, templates and static files.

from flask import Flask, Blueprint

#Import of environment variables
environment = os.environ['ENV']
app_domain = os.environ['DOMAIN'] if environment == 'PROD' else ''

app_bp = Blueprint('app_bp', __name__,
    template_folder='templates',
    static_folder='static')

#Apply Bluprint 'app_bp' to route
@app_bp.route('/')
def home():
    return render_template('index.html', app_domain=app_domain)

#Apply Blueprint with url_prefix in production mode after all routes
if environment == "PROD":
    app.register_blueprint(app_bp, url_prefix=app_domain)
else:
    app.register_blueprint(app_bp)

if __name__ == "__main__":
...

In template files :

1 - Pass app_domain to route props :

app_domain = os.environ['DOMAIN'] if environment == 'PROD' else ''

@app_bp.route('/')
def home():
    return render_template('index.html', app_domain=app_domain)

2 - Add app_domain to css link stylesheet, js script, images and a tag href :

<script src="..{{ app_domain }}/static/js/main.js"></script>

<link rel="stylesheet" href="..{{ app_domain }}/static/css/main.css" />

<img src="..{{ app_domain }}/static/images/ccmainbanner-1.jpg" alt="" />

#link to main.html (/main)
<a class="btn btn-success" href="{{ url_for('app_bp.main') }}">Build your own PC</a>

In JS files :

1 - Pass app_domain (eg : main.html) with the script tag :

<script>var appDomain = "{{ app_domain }}";</script>

2 - consume app_domain in dedicated JS file (eg : main.js) :

window.document.location = appDomain + "/order";

Summary

Deploying a Flask application with NGINX and uWSGI provides a robust foundation for scalable and secure web applications. By leveraging NGINX's capabilities as a reverse proxy server and uWSGI's efficient handling of WSGI requests, you can enhance your application's performance and reliability. This architecture not only facilitates load balancing and SSL/TLS encryption but also streamlines deployment processes in production environments.

In summary, understanding and implementing this architecture ensures that your Flask applications are well-equipped to handle varying levels of traffic while maintaining high standards of security and performance.
